TECHNICAL SPECIFICATION

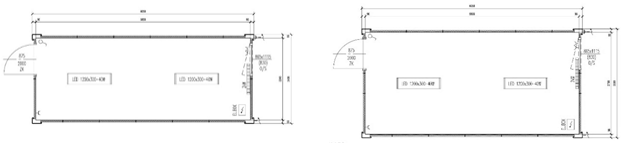

DIMENSIONS:
External: L: 6.058 mm, W: 2.438 mm, H: 2.800 mm External: L: 6.058 mm, W: 2.990 mm, H: 2.800 mm
Internal: L: 5.866 mm, W: 2.246 mm, H: 2.500 mm Internal: : L: 5.866 mm, W: 2.798 mm, H: 2.500 mm
FRAME: welded steel frame, stacking in 3 layers (1+2), roof water outlets inside corner posts.
FLOOR: structure ( bottom to top ): galvanized sheet metal, mineral wool insulation 100 mm, λ = 0.039 W/mK, OSB 22 mm, grey PVC floor covering 1.5 mm, heat transfer coefficient U = 0,34 W/m2K.
WALLS: structure: replaceable PIR panels 60 mm, galvanized and painted profiled metal sheet + PIR insulation + galvanized and painted white metal sheet, λ = 0.022 W/mK, heat transfer coefficient U = 0,37 W/m2K.
ROOF: structure: (top to bottom ): trapezoidal galvanized metal sheet, mineral wool insulation 100 mm, λ = 0.039 W/mK, laminated white chipboard 12 mm, heat transfer coefficient U = 0,36 W/m2K.
WINDOW: 1 pc 865 x 1115 mm, opening/tilt, PVC white frame, double glazing, heat transfer coefficient U = 1,2 W/m2K
DOOR: 1 pc 875 x 2000 mm, type ZK, double-sided sheet metal, colour RAL 7035.
COLOUR: Grey RAL 7035
ELECTRICAL EQUIPMENT: 2 pcs of light LED panels 1200 x 300 mm, 1 pc switch, 2 pcs sockets, switchboard with circuit breakers and FI breaker, switchboard located on the inner wall, inspection report, external socket and plug.
HEATING: electric direct heating panel 2 kW, digitally controlled.

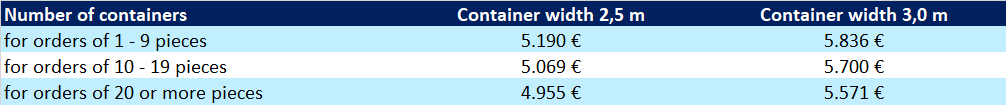

PRICE: prices excl. VAT, EXW WAREX 790 70 Javorník ( CZ ). Final price based on ordered quantity:
DELIVERY TIME: standard units on stock, customized units 2 months.
PAYMENT CONDITIONS: 50% advanced payment, 50% before dispatching.
